DINGHISHENG WIRE&CABLE
| 聚氯乙烯绝缘电线（环保） | Polyvinyl Chloride Insulated Wire. |
| 名称：UL1007 | STYLE ：UL1007 |
| UL档案号：E****** | UL LEADER FILE NO：E****** |
| CSA档案号: ****** | CSA MASTER CONTRACT:****** |
| ■产品说明： | ■ PRODUCT DESCRIPTION |
| ●额定温度：80℃ | ●Rated temperature：80℃ |
| ●额定电压：300V | ●Rated voltage：300V |
| ●参考标准：UL758,UL1581,CSA C22.2 | ●Reference standard：UL758,UL1581,CSA C22.2 |
| ●导体使用单支或绞合32-16AWG镀锡或裸铜 | ●Solid or stranded ,tinned or bare copper conductor 32-16AWG |
| ●PVC绝缘，符合ROHS环保标准 | ●PVC insulation ,comply with ROHS environmental standard |
| ●通过UL VW-1及CSA FT1阻燃测试 | ●Passes UL VW-1 and CSA FT1 flame test |
| ●绝缘厚度均匀、易裁线、易剥皮 | ●Uniform insulation thickness to ensure easy stripping and cutting |
| ●用于一般电子、电器设备内部连接线 | ●For general purpose internal wiring of appliance |
■印字 MARKING
------ E****** AWM 1007 □AWG 80℃ 300V VW-1 --- ****** CSA AWM □AWG 80℃ 300V I A FT1 -LF- --DINGHAISHENG

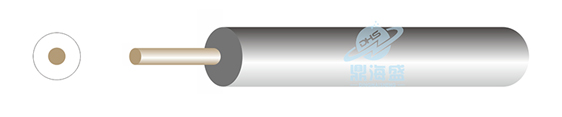

■产品结构 CABLE CONSTRUCTION
导体
Conductor
|
绝缘
Insulation
|
最大导体电阻
Max.cond.
Resistance
(Ω/Kft,20℃)
|
标准长度
Standard
Put-up |
||||
规格
AWG
|
根数/线径
(No/mm) |
外径
Dia.
(mm) |
厚度
Thickness
(mm) |
标称外径
O.D.
(mm) |
英制
ft/coil
|
公制
m/coil
|
|
26 |
7/0.16 |
0.48 |
0.38 |
1.20±0.1 |
45.2 |
2000 |
610 |
24 |
11/0.16 |
0.61 |
1.40±0.1 |
29.3 |
|||
22 |
17/0.16 |
0.76 |
1.55±0.1 |
16.7 |
|||
20 |
21/0.178 |
0.94 |
1.80±0.1 |
10.5 |
|||
18 |
16/0.254 |
1.16 |
2.10±0.1 |
6.52 |
|||
16 |
26/0.254 |
1.49 |
2.30±0.1 |
4.18 |
|||
